Alfa Romeo Stelvio

Fiat 500X 2016...

Fiat 500X 2018...

Fiat Doblo 2015...2020

Fiat Tipo 2015...



There is 3 possibility to do this dashboard:

1. All operation by OBD , but most the cars has instaled Security gateway and programming by

    OBD is prohibit.



2. Without remove dashboard , but You must find security gateway in car, remove it and by

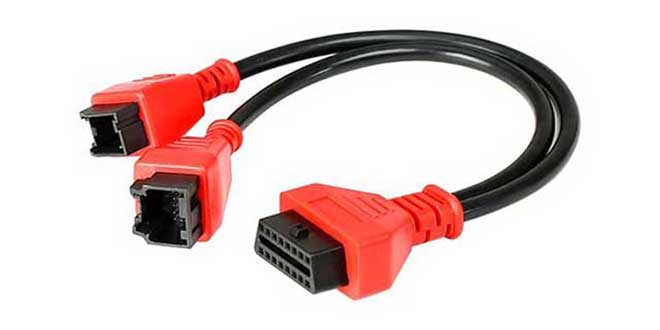

    special bypass cable which you install in place where was security gateway.

    This cable has OBD socket and connect OBD X-Tool cable to it.

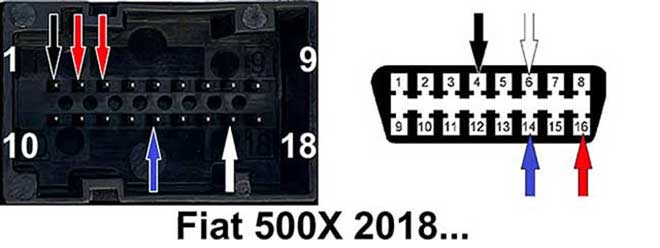

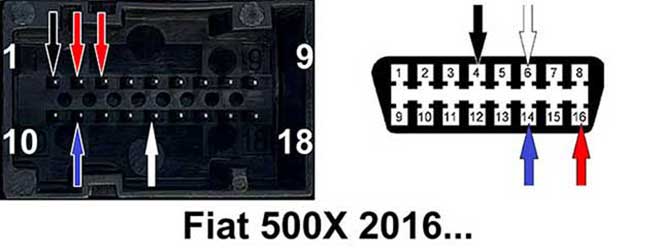

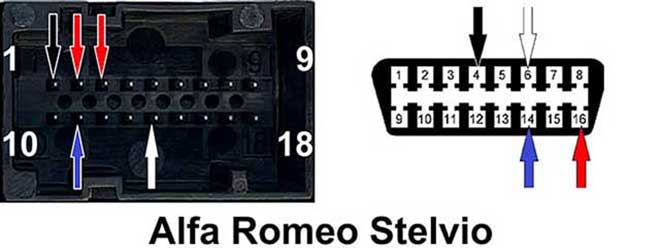

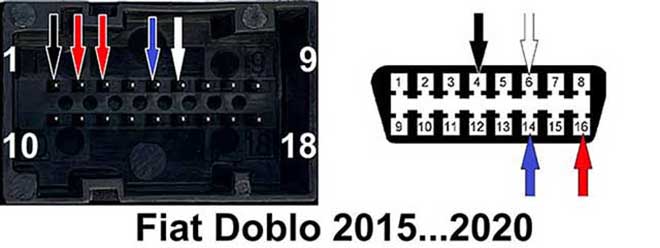

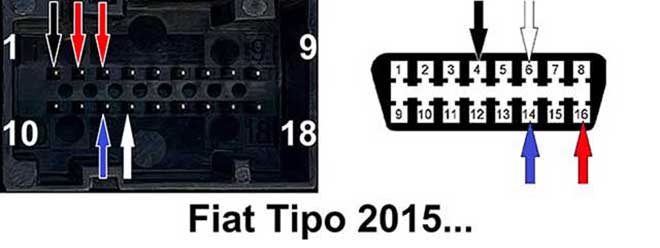

3. Remove dash and you can do by Dash Connector. Connect as on picture:
